Freelander - 5 Door Electric Sunroof

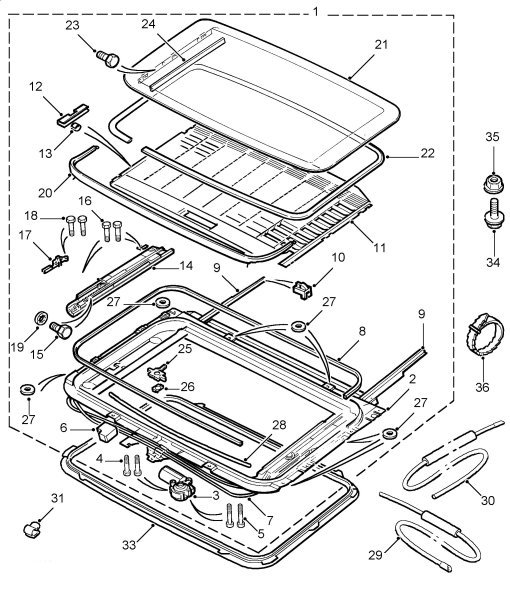

Exploded View - 5 Door Electric Sunroof
 |
- Sunroof assembly-electric operating glass - EED101173LUM
- Tray assembly sunroof - EGD100160
- Motor assembly - sunroof - ECQ100190
- Screw - EYP101220
- Screw - EYP101230
- Relay Sunroof - EGW100072
- Cable assembly sunroof drive - EGY100191
- Seal Sunroof tray - EZB100120
- Guide assembly - sunroof LH - EXM100330, RH - EXM100320
- Block sunshade slide - EFM100050
- Sunshade assembly sunroof sliding - EGT100200
- Block sunshade slide - EFM100060
- Spring sunshade slide block - EEW100080
- Mechanism assembly sunroof - LH - EFI100030, RH - EFI100020
- Screw - EYP101210
- Screw pan - EYP101060
- Block sunroof pivot - LH - EEK100150, RH - EEK100140
- Screw Torx pan - EYP101070
- Washer starlock - EYF100190
- Deflector assembly sunroof wind - EFJ100240
- Panel sunroof glass lid - EFT100390
- Seal - EEQ100340
- Screw pan - EYP101060
- Cover sunroof mechanism - EFY100140
- Locator sunroof drive cable - EHD100100
- Insert sunroof - EZN100040
- Washer nylon - EYF100260
- Seal sunroof glass lid - EEQ100370
- Tube front sunroof drain - EEH100531
- Tube rear sunroof drain - EEH100542
- Clip - EGP100250
- Valve sunroof drain - EGH100080L
- Finisher sunroof - EDG100240LUM
- Bolt sunroof to roof - FS108085L
- Nut flange sunroof to roof - FN106047L
- Tie cable sunroof to roof - UKC6684L
|
